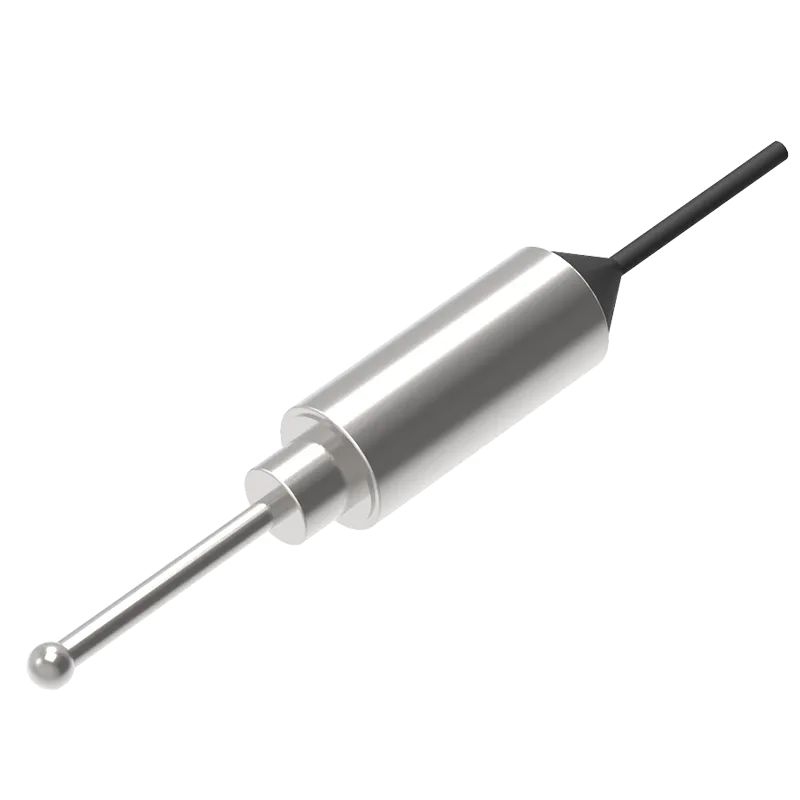

| Model | MR-T1X-H-LED |
| Working principle | Contact sensor |
| Housing | Cylindrical |
| Detection Distance | 5mm |
| Indicator | Indicator light available |
| Position repeatability | + / – 0.01 mm |
| Operating Frequency | 120 reps/min |
| Hysteresis | Under 0.08mm |
| Output type | NPN Normally open (NO) |
| Output Current | ≤12mA |
| Operating Voltage | 5~24VDC |
| Current Consumption | ≤12mA |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Insulation strength | 250VDC≥20MΩ |
| Dielectric strength | AC1000V for 1 minute |
| Enclosure rating | IP65 |
| Operating Force | 2N |
| Travel | 5mm |
| Connection | 1M/3 core cable |
| Dimensions | 80.6 x14x14mm |
| Material | SUS303 |
| Weight | About 13.1g |
| Accessory | Nut |
| Operate position(OP) | 2-0.5 mm |
